SLS 3D принтер Lisa X

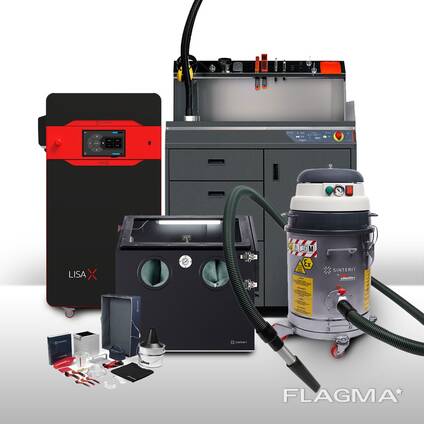

Комплектація:

1. Принтер Lisa X
2. Транспортувальний бокс Lisa X
3. PHS
4. ATEX пилосос
5. Інстументи для роботи Lisa X
6. Сепаратор
7. Foldable Tray
8. Піскоструй SLS
9. PA 12 Industrial - 6kg

Lightning-fast printing
with large working area
• fast printing
• a large working area
• access to the full range of materials
• open environment
• tiltable screen
• cargo-type pull-out transfer overflow bin

GENERAL
Technology SLS - Selective Laser Sintering
Laser type IR Fiber Coupled Diode Laser,
30W; λ = 976 ± 3 [nm]
rated to > 30,000 hrs
Laser scanner type Galvo
Dimensions 650x610x1200 [mm] (25.6x24.0x47.2 [in])
Weight 145 [kg] (319.7 [lbs])

Print volume
Max size of print diagonally1 398 [mm] (15.7 [in])
Max print volume TPU based / Flexible materials: 130x180x340 [mm]
(5.1x7.1x13.3 [in])
PA / PP: 130x180x330 [mm] (5.1x6.7x13.3 [in])

Printer Parameters
Size of Print Bed 150x200x350 [mm] (5.9x7.9x13.8 [in])
Layer height Z (min - max) 0.075 - 0.175 [mm] (0.003 - 0.006 [in])
Build Speed up to 14 [mm/h] (0.55 [in/h])

Print Features
Min. wall thickness from 0.5 [mm] (0.020 [in])
Hole diameter from 0.5 [mm] (0.020 [in])
Moving part clearance from 0.2 [mm] (0.008 [in])

Additional Printer Features
Inert gas control system built-in
Average inert gas consumption 0.48 [m3/h] = 8 [l/min.]

Software
Software2 Sinterit Studio
Supported file types STL, 3MF, OBJ, 3DS, FBX, DAE
Output file types *. scode, *. sspf, *. sspfz
OS compatibility Microsoft Windows 10 or higher

Communication
LCD screen 9" interactive touchscreen
On-board camera Built-in
Connectivity WiFi / Ethernet / USB

Heating System
Independent 4 modifiable zones: print chamber , print surface, cylinder
and piston - 16 independent heating elements
Max temperature in the chamber 210 [°C] / 410 [°F]

Power
Operating voltage 230 [V] AC, 50/60 [Hz], 8 [A]
or 100-120 [V] AC, 50/60 [Hz], 15 [A]
Average power consumption 0.85 [kW]
Max power consumption 1.65 [kW]
